SMART BEACON – BLE – MIDI

Description

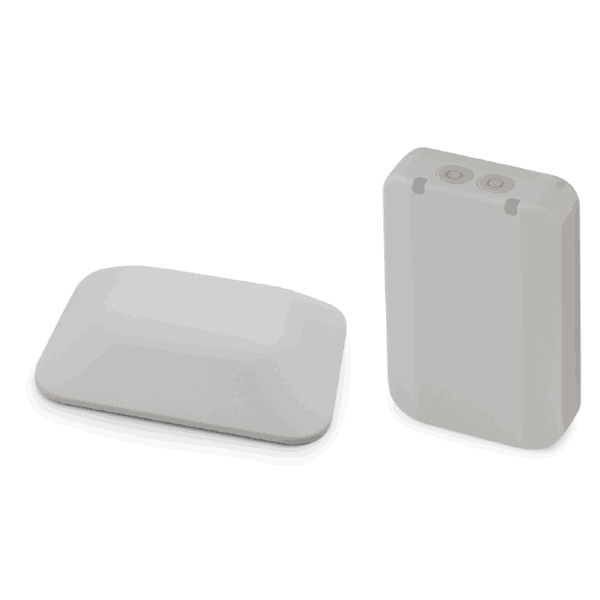

This small, portable beacon pinpoints the location of its wearer.

The BLE midi smart beacon can be used with the BLE Smart and BLE Network architectures. It is possible to configure scan and broadcast cycles according to movement (from the accelerometer) to save battery power.

This beacon measures 65 x 45 x 17.5 mm. Discover similar tags with different sizes:

  • MINI INTELLIGENT BEacon – BLUE / Dimensions 45 x 45 x 17.5 mm
  • INTELLIGENT BEacon – BLE / Dimensions: 100 x 46 x 22.3 mm

Également dans la gamme BLE :

  • BEACON – BLE / Battery-powered beacon installed in a fixed location that broadcasts a Bluetooth Low Energy signal every 800 milliseconds to nearby tags.
  • NETWORK GATEWAY – BLE DONGLE / The network gateway has 7 USB ports for receiving data from BLE dongles and sending it back to the server via the network.

If you’re looking for a more precise reading experience Turn to our Ultra Wide Band (UWB) products

Request a quote
  • Technical specifications

  • • Compatible avec Ubudu BLE V1 (liaison montante) & V2 (liaison descendante)
    • Mise à niveau du micrologiciel
    • Accéléromètre intégré
    • Indicateur visuel à DEL
    • Facteur de forme attachable
    • plus de 23 mois d’autonomie, selon le scénario
    • Facteur de forme portable
    • Alimenté par une batterie de 1000mAh (changeable)

    • Conçus et fabriqués dans l’UE
    • Chaque unité est soigneusement testée
    • Garantie d’un an
    • Dimensions : 65 x 45 x 17,5 mm
    • Poids ~42 g
    • Certification CE
    • IP54 prêt pour les zones industrielles
    • IP67 en option
    • Température de fonctionnement : -30 °C 60 °C
    • Disponible en blanc et en gris
