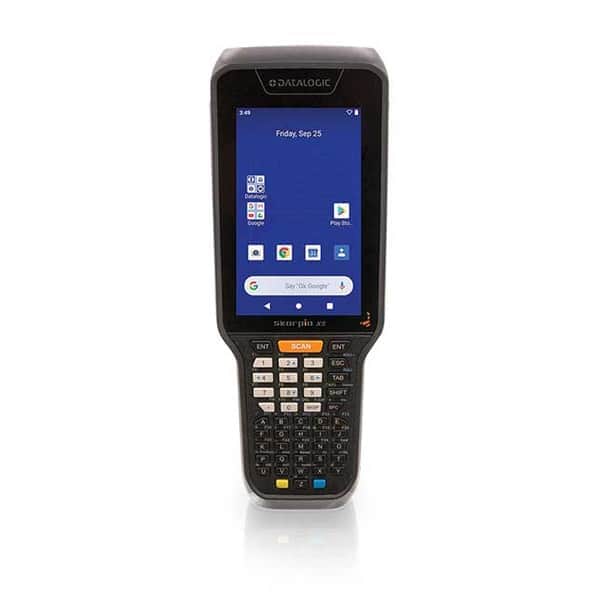

SKORPIO X5

The Skorpio X5 The Skorpio X5 is the best-in-class, rugged, touch-sensitive handheld terminal for the toughest corporate data capture challenges; from distribution centers to retail outlets. Lightweight, ergonomic, with many different configurations and features, the Skorpio X5 is the ideal work tool for professionals in the warehouses, back-offices, production sites and logistics facilities.

The Skorpio X5 is equipped with the Qualcomm Snapdragon® 660 platform, the market leader, clocked at 2.2 GHz for optimum performance in the most demanding applications; Il est équipé de l’OS Google Android en version 10 avec GMS et une validation par Google en tant qu’appareil robuste « Android Enterprise Recommended» (AER). The Skorpio X5 is built to stand up to the rigors of everyday use.for the toughest environments, with a tightness index IP65 and repeated falls from 1.8 m onto the concrete.

The Skorpio X5 offers two charging modes:

• a non-contact device with a 15-watt wireless charging
• a contact connector pogo pin” type for Ethernet communication through the base.

The Skorpio X5 is equipped with the largest screen in its class (4.3″), allowing you to run more feature-rich applications or enjoy a clearer, more legible screen; The high-visibility matte display makes it easy to read in the dark. bright environments (interior and exterior);

The removable standard (3,500 mAh) or high-capacity (6,200 mAh) battery, hot-swappable battery technology and Datalogic’s intelligent battery management application let you work without interruption and optimize your working time.

WIRELESS COMMUNICATION

• Local area network (WLAN): IEEE 802.11 a/b/g/n/ac and 802.11 d/e/h/i/k/r/v/w/mc (for indoor localization); IPv4, IPv6, 2×2 MU-MIMO for higher throughput and coverage; Frequency range: Depending on the country, generally in the 2.4 GHz and 5 GHz bands;
• Personal Area Network (WPAN): Class 2, Bluetooth V5.0 with support for BR/EDR and Bluetooth Low Energy (BLE)
• NFC communication: Support for the following standards: ISO14443-4 (type A, type B); ISO15693; Mifare; Felica

DECODING CAPACITIES

• 1D / Linear codes: CodaBar, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Discrete 2 of 5, UPC/EAN, GS1 DataBar™ linear codes, Interleaved 2 of 5, Matrix 2 of 5, MS
• 2D Codes (DE2112-SR and DE2112-MR): Aztec Code, Data Matrix, Maxi Code, Micro QR Code, QR Code
• Postal codes (DE2112-SR and DE2112-MR): Australian Post, Japan Post, KIX Code, PLANET, POSTNET, Royal Mail Code (RM4SCC), USPS Intelligent Mail
• Stacked codes (DE2112-SR and DE2112-MR): Micro-PDF417, PDF417, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, UPC/EAN/JAN Composites, GS1 DataBar Composites and GS1-128 Composite

ELECTRICAL CHARACTERISTICS

• Battery: Removable battery with rechargeable Li-Ion cells; Micro-USB type-C for fast battery recharging; Standard: 3.7 V; rated 3,460 mAh; typical 3,500 mAh (12.8 watt-hours); standard on all handheld models Extended: 6,080 mAh, 6,200 mAh (22.1 watt-hours); standard on all pistol-grip models
• Wireless charging: 15 W quick charge;

ENVIRONMENTAL FEATURES

• Drop resistance : Withstands multiple drops from 1.8 m onto concrete, in accordance with IEC62-2-32;
• Falls : Withstands 1,000 drops from 1 m, 2,000 impacts
• Particle and water tightness: IP65
• Chemical resistance: Chemical cleaner and resistant to industrial oils
• Operating temperature : -20 to 50 °C
• Storage/Transport temperature: -30 to 70°C

CONNECTIONS

• Interfaces: USB Type-C: USB 3.1 gen 1 (3.2 gen 1×1), host and peripheral; Gigabit Ethernet connectivity (via 3-slot docking station)

SENSORS

• Accelerometer : Three-axis accelerometer for orientation detection;
• Gyroscope: measures angular velocity
• Ambient light : Automatic adjustment of screen backlight
• Proximity: Presentation mode sensor for 2D models only (time-of-flight based)

SAFETY AND REGULATIONS

• Organizational approvals: The product complies with the safety requirements and regulatory approvals necessary for its intended use;
• Respect for the environment: Complies with RoHS 2011/65/EU directive
• Laser classification : VLD – Class 2 IEC/EN60825-1; Complies with 21 CFR 1040.10, except for deviations in accordance with Laser Notice No. 50 of June 24, 2007
• LED classification: Exempted risk group IEC/EN62471

PHYSICAL CHARACTERISTICS

• Dimensions: Size of front panel: 218 x 78.5 mm / Max. thickness: 1.5 mm; top: 31.3mm; bottom: 35.6mm max in WLC version;
• Main display: TFT / LCD 4.3″ WVGA with 800×480 pixel resolution; LED backlighting and integrated touchscreen, high brightness for better visibility indoors and out
• Keyboard: 47 alphanumeric keys, 38 numeric function keys, 28 numeric keys; backlit keyboard;
• Touch screen: 6-point capacitive multi-touch screen with Gorilla Glass 3 tempered glass; glove and stylus holder
• Weight: Brick version: with standard battery 488 g, with high-capacity battery 514 g; Pistol version: with standard battery 600 g, with high-capacity battery 626 g;

READING PERFORMANCE

• Camera: Rear camera: Resolution: 13 MP; Lighting: User-controllable LED flash

Read head :

• 1D imager: 2,500-pixel linear CCD; green LED scan line; Minimum print contrast: 15%;
• Optical resolution: 0.063 mm (linear codes)
• Depth of field (typical): 4.0 to 74 cm (EAN 0.330 mm)
• Standard 2D imagers (support for 1D / 2D codes):
• White LED illumination, 650 nm laser aiming; minimum print contrast: 25% ;
• Optical resolution: 1D codes: 0.076 mm; 2D codes: 0.190 mm (DM), 0.168 mm (PDF);
• Depth of field (typical): 4.5 to 74 cm (EAN 0.330 mm); 6.5 to 40 cm (DM 0.381 mm)
• 2D Imager Medium: White LED illumination; minimum print contrast: 25% ;
• Optical resolution: 1D codes: 0.076 mm; 2D codes: 0.190 mm (DM), 0.168 mm (PDF) Depth of field (typical): 8.0 to 100 cm (EAN 0.076 mm); up to 160 cm (DM 1.397 mm)

SOFTWARE

• Applications: Device and browser lock with prior license, managed by 42Gears; Datalogic Wi-Fi protection; compatible with professional PTT functionality provided by Zello; Datalogic SoftSpot configurable virtual button
• Deployment: Scan2Deploy Studio, Zero-Touch Android, registration via QR code
• Configuration and maintenance: Scan2Deploy Studio, OEMConfig
• Software maintenance: Datalogic Shield: recurring security patches, firmware updates and operating system upgrades
• Development : Android: Datalogic Android SDK, Xamarin SDK, Ionic Cordova SDK and React Native SDK
• Mobile Device Management (MDM): SOTI MobiControl, VMWare AirWatch, Ivanti Avalanche, 42Gears SureMDM, Microsoft Intune
• Terminal emulation: StayLinked SmartTE, Ivanti Velocity

SYSTEM

• Memory: RAM: 3 / 4 GB; Flash memory: 32/64 GB (partly used for firmware and reserved data)
• Microprocessor: Qualcomm SD660 Octa-core 2.2 GHz
• Operating system: Android 10 with GMS: upgrade support for 2 main operating systems
• Audio: Wideband conversation (HD Audio) supported on Android
• Card slots: Micro Secure Digital (SDXC) slot for up to 256 GB
