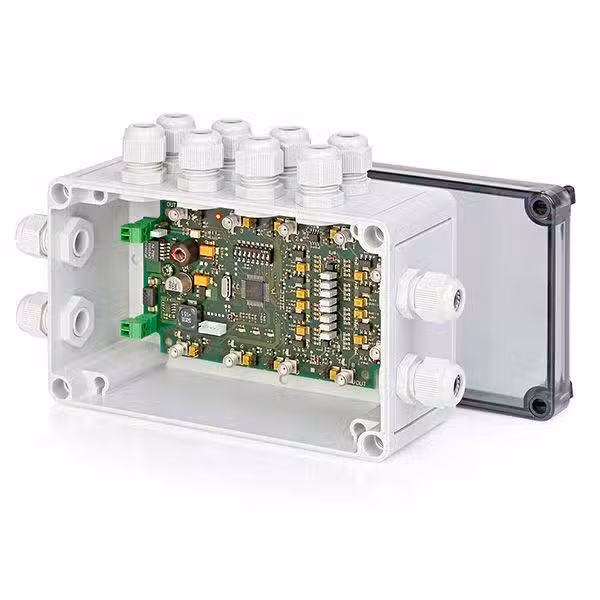

8 antenna multiplexer MUX

Description

This 8-antenna multiplexer makes it easy to switch between RFID antennas at a frequency of 13.56 MHz; One or other of the eight outputs can be assigned to the two inputs by adjusting the jumper; The multiplexer is controlled via a digital input or the aerial cable connected to the player;

  • Dimensions: 182 x 110 x 90 mm, weight approx. 550 g;
  • Protection rating: IP65
  • Frequency: 13.56 MHz
  • Supply voltage: 12-24 V DC
  • Energy consumption: max; 4.0 W
  • Attenuation per channel: max; 0.5 dB
  • Permissible switching power: max; 10 W
  • RF connections: 2 x SMA jack input, 8 x SMA jack output
  • RF switch: electronic switch, switching speed < 1 ms
  • Triggering: reader via RF input 1, external pulse generator digital input
