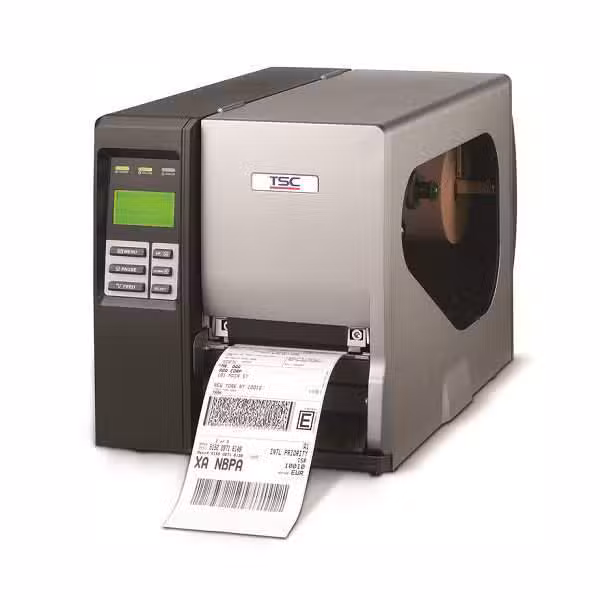

TTP 246M Pro


The TTP-246M Pro series is based on the renowned TTP-246M platform with a number of significant changes;

Developments in the Pro series

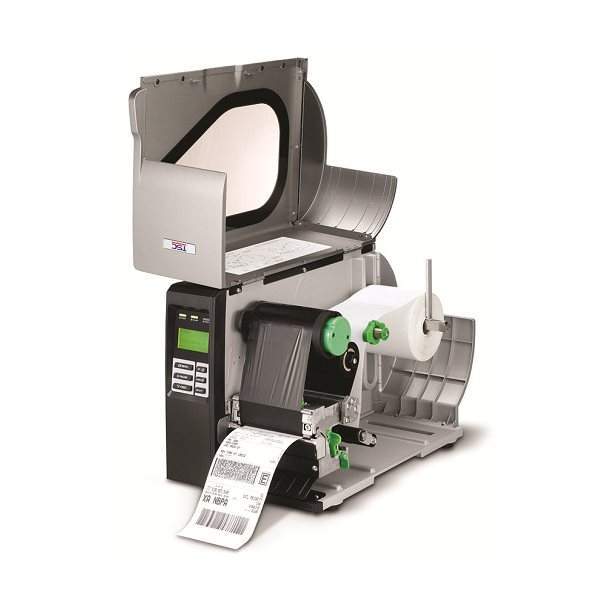

The new Pro series has a reinforced cast aluminium chassis and includes a metal mandrel for media support and two robust cylinders with shock absorbers; Specially designed to optimise your budget, this new, more robust printer will meet your most demanding printing requirements;

Other improvements include a new, quieter print engine, a gap sensor locking system to prevent the label sensor from moving and a new anti-static ribbon brush; Finally, TSC has added a USB host option for applications that require the use of either an external scanner or a USB keyboard;

Superb resolution, superior warranty
There are two models available with the TTP-246M Pro series; The 203 dpi TTP-246M Pro printer offers speeds of up to eight inches per second, and the 300 dpi TTP-344M Pro offers speeds of up to six inches per second; All TSC printers come with a standard two-year warranty;

A host of standard functions;
The TTP-246M Pro series printers come with a host of features as standard, including a holder for 600-metre-long ribbons and 8.2″ OD label rolls, a large 6-key LCD display, an integrated USB 2.0 connection, a parallel port and a serial interface; An internal Ethernet connection makes it easy to integrate the printer into a network, and a GPIO port or USB host port are also available as options;

    • Robust design with reinforced cast aluminium chassis;
    • 600-metre capacity ribbon
    • USB 2.0, serial and parallel port connections, internal Ethernet as standard;
    • Available in 203 and 300 dpi resolution;
    • Printing speed of up to 203 mm (8") per second
    • 32-bit RISC processor;
    • Plug&play operation thanks to TSPL-EZ™ firmware
    • Powerful programming tools
    • Options included: USB host for use with keyboards and scanners, pre-glue module, label presence and rewind, cutter
