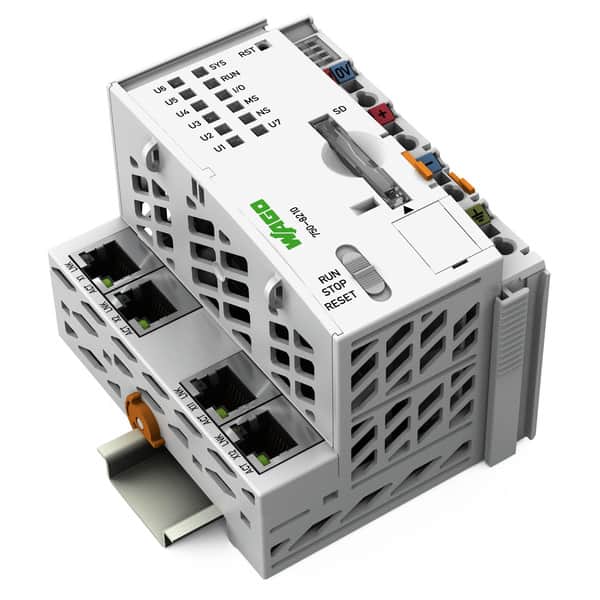

PFC200 controller


The PFC200 is a compact controller from the WAGO-I/O-SYSTEM range. In addition to network and fieldbus interfaces, it supports the digital, analogue and specific terminals of the 750/753 series. Four ETHERNET interfaces and an integrated switch enable wiring in a line topology. An integrated web server provides the user with configuration options and status information. Typical applications for the PFC200: use in the process industry and for machinery such as packaging, filling, textile, metal and woodworking plants. The device is suitable for use in harsh environments:

  • wide temperature range
  • higher breakdown voltage and EMC resistance
  • high resistance to vibration and impact
  • Advantages :
    • Programming to IEC 61131-3
    • Programmable with WAGO-I/O-PRO V2.3 or e!COCKPIT
    • Direct connection of WAGO I/O terminals
    • 4 x ETHERNET (configurable)
    • Linux® operating system with RT-Preemption-Patch
    • Configuration using CODESYS, e!COCKPIT or the Web management interface
    • Maintenance-free
